Indoor P4.81 Rental LED Display full color led screen for stage,event concert

Brand Name : PRT

Model Number : P4.81-1000

Certification : CE,RoHs, FCC

Place of Origin : Shenzhen Guangdong China

MOQ : 5 sq.m

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 3000sq.m per month

Delivery Time : 15 work days

Packaging Details : flight case or wooden case

Item model : indoor P4.81 led screen

LED Chip : SMD2121

Cabinet size : 500 x 1000 mm

Application : indoor stage,concert

Cabinet material : Die-casting aluminum

Brightness : >1500nits

Contact Now

Slim thickness Led display panel 500 x 1000mm for indoor rental and advertising

1.Super Light and Thin 14.5KG/panel with a depth of 75mm which is half of the depth of traditional LED screen,

saving space and transportation cost.

2.High Refresh Rate ;Refresh Rate≥2000, offering impressive visual effect.

3.Noiseless Free of fans and air conditions, excluding noise and reducing power consumption.

4.Fine and Smooth Picture Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.

The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.

5.Seamless Splicing High conformity of picture without gap and information missing, realizing a seamless splicing display.

6.Fast Installation and Dismantlement.

7. Application: widely use for stage background, advertising activity, press conference, news conference etc.


Techinical Specification:

P4.81 Indoor full Color LED Screen Specification
Pixel pitch 4.81mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 250mm x 250mm
Resolution of module 52x52
Size of cabinet 500mm x 1000mm x 75mm
Resolution of cabinet 104x208
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 14.5KGS
Brightness >1500cd/㎡
Density 43264dots/㎡
Best viewing angle 160 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-60M
Maximum power consumption 800W/㎡
Average power consumption 300W/㎡
Driving method 1/13 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature —20℃~+50℃±10%
Working humidity 10％ ～ 90％
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >2000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
Effectivce Communication
Distance(without relay)		 Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

Indoor P4.81 Rental LED Display full color led screen for stage,event concert Manufactures

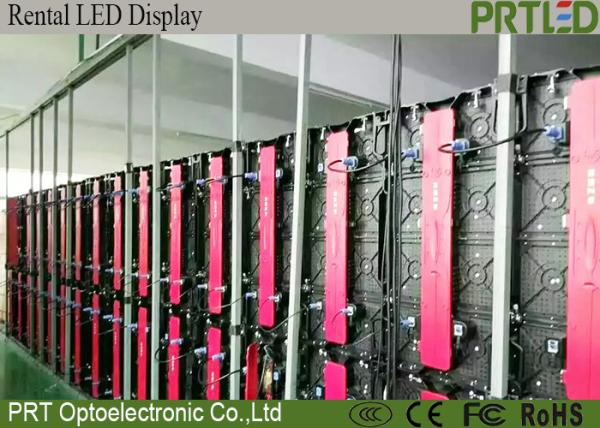

Indoor P4.81 Rental LED Display full color led screen for stage,event concert Images
